SSE160 self-elevating door frame elevator is a new type of vertical transport machinery, which is suitable for building structure, interior and exterior decoration and house maintenance and other projects. It has the advantages of wide applicability, convenient erection, safe use and cheap price.

A lift, also called a gantry, is a lifting mechanical equipment or device for a platform or semi-closed platform that carries people or goods up and down a vertical passageway. An ensemble of platforms and the equipment, motors, cables, and other auxiliary equipment used to operate them. The lift is a kind of lift equipment composed of a walking mechanism, a hydraulic mechanism, an electric control mechanism and a supporting mechanism. The hydraulic oil forms a certain pressure from the vane pump, and enters the lower end of the hydraulic cylinder through the oil filter, flameproof electromagnetic directional valve, throttle valve, liquid-controlled check valve, and balance valve, so that the piston of the hydraulic cylinder moves upward, lifting heavy objects. The oil return from the upper end of the hydraulic cylinder returns to the oil tank through the flameproof electromagnetic directional valve, and its rated pressure is adjusted through the relief valve.

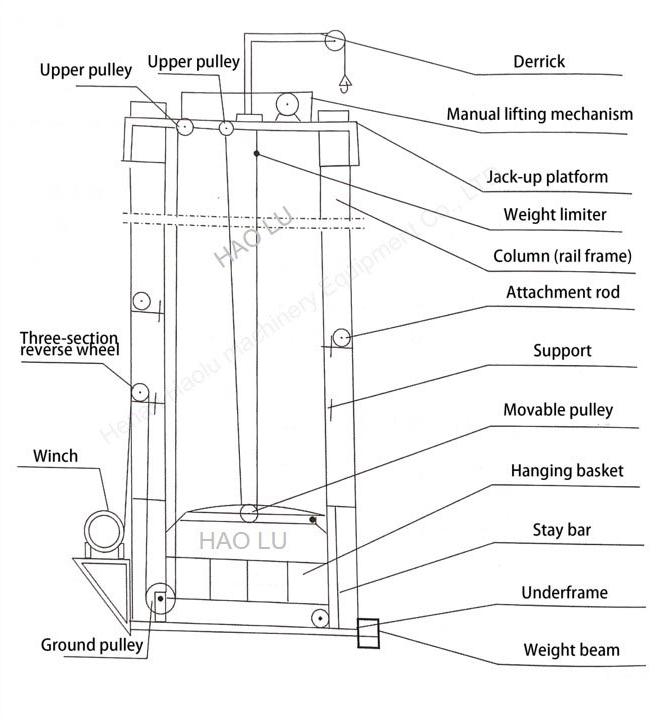

SSE160 gantry frame Part Detail Diagram

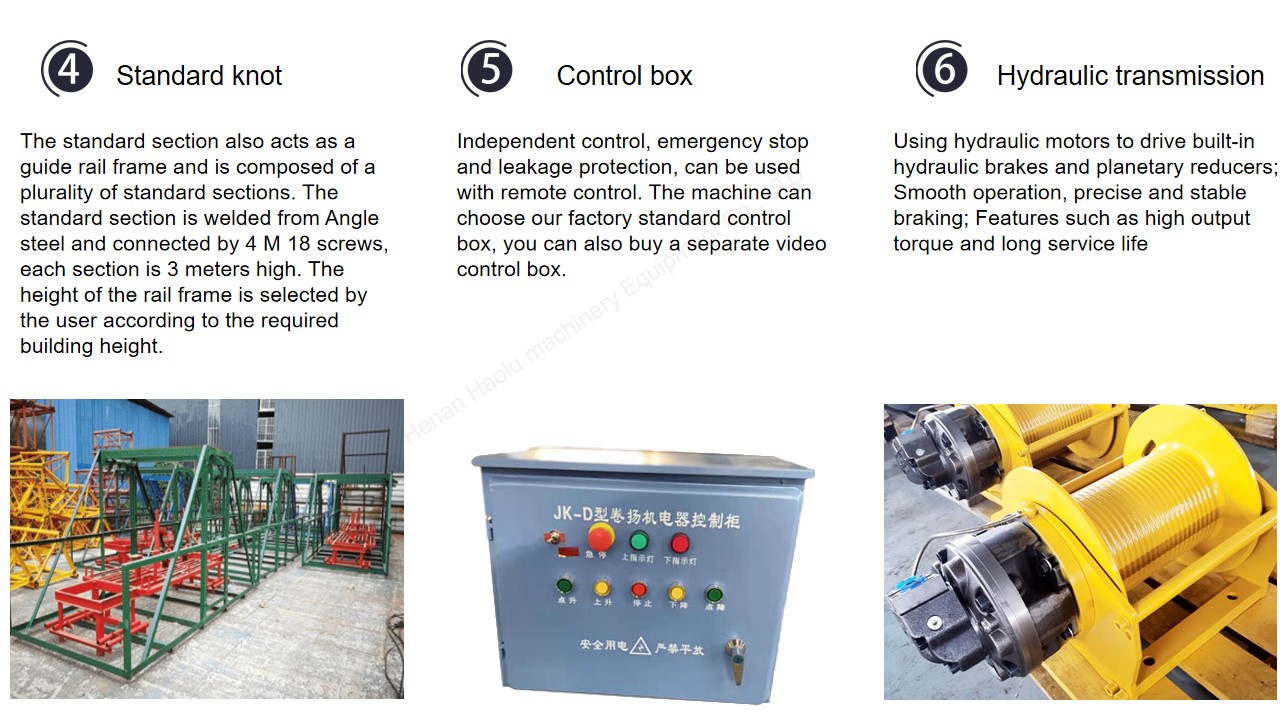

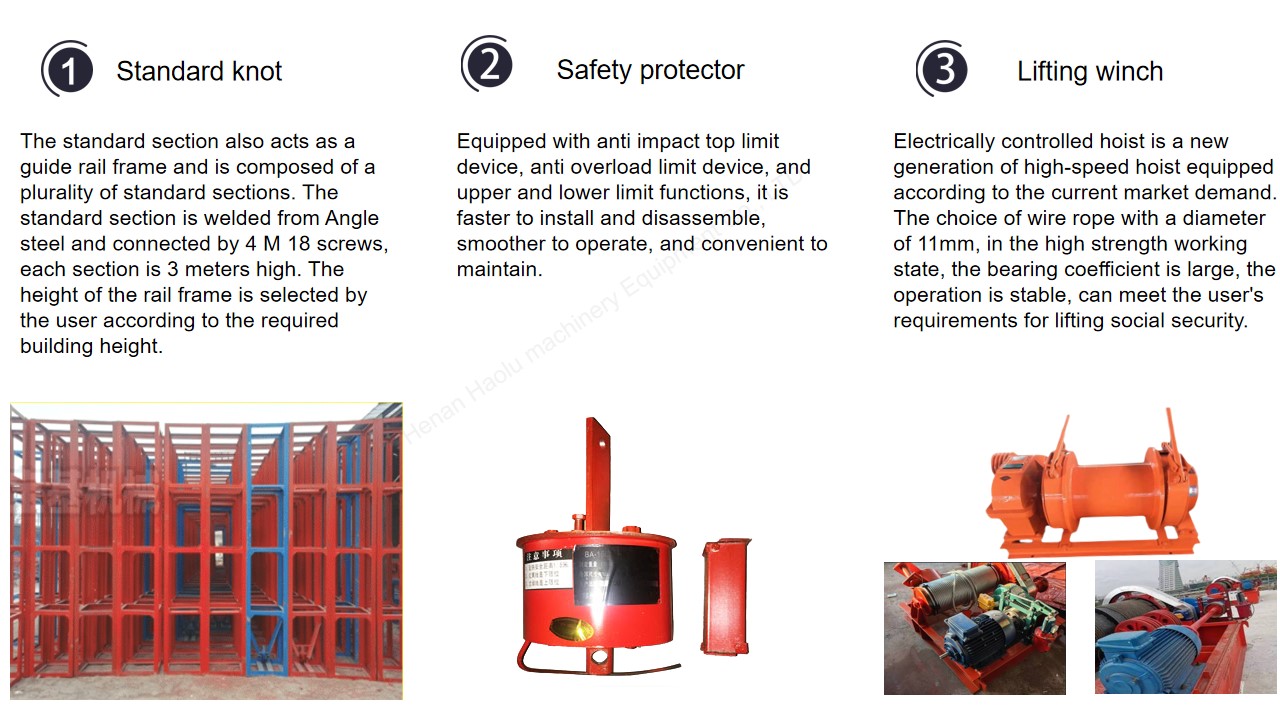

SSE160 gantry frame, detail picture

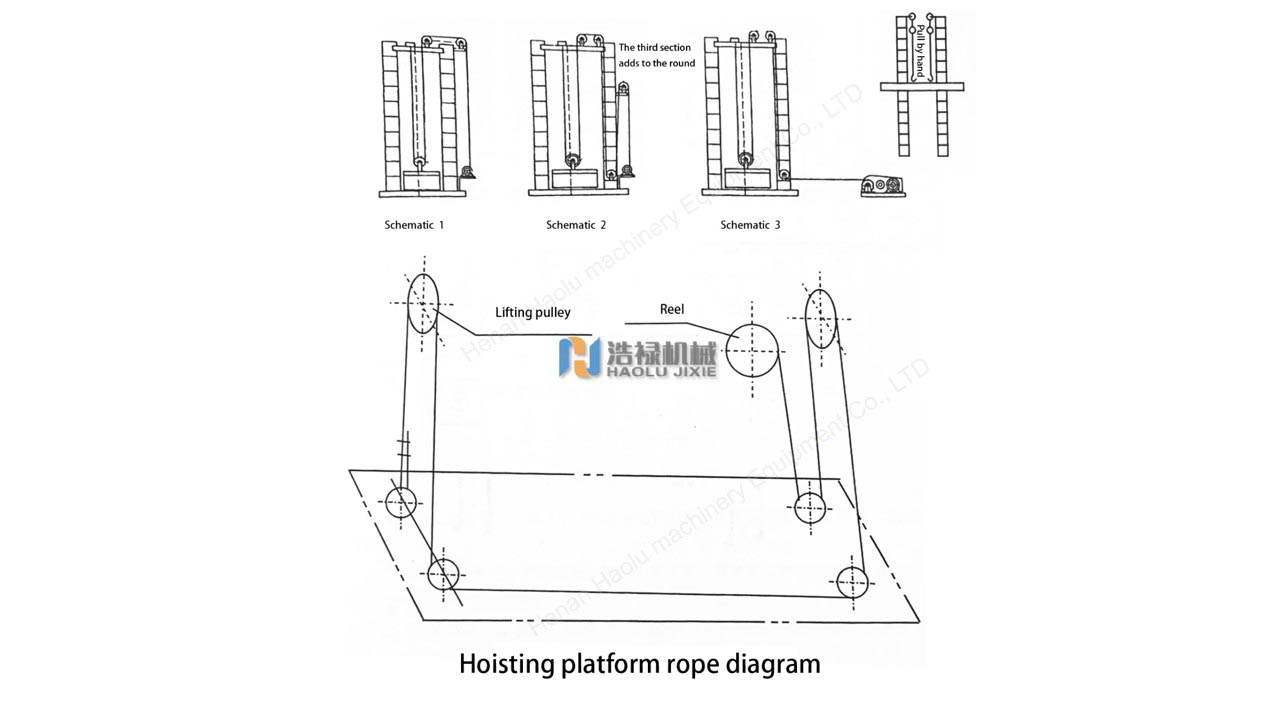

Principle of SSE160 gantry elevator

1) Having special requirements for objects with a wider or longer volume.

2) The height of a general elevator should not exceed 25 meters.

3) For equipment that is considered economical.

4) For installation locations with restrictions or external attachments.

5) For those who only transport goods.

6) Generally applicable to mechanical equipment transportation, textile, and industrial transportation.

SSE160 type gantry lift features and uses

Usage: SSE160 self-opening frame elevator is a new type of building lifting equipment, with automatic lifting device, with the increase of the building, can be raised, but also has an attachment device, so there is no need to pull the rope, improve the construction working conditions.

SSE160 type lift is equipped with broken rope safety protection device, which can effectively prevent the cage fall caused by short Jomon and prevent accidents, at the same time, the lift is also equipped with a height limit, which can accurately send the material to the required height.

Purpose:

1. Used for building, hall, bridge, viaduct, tunnel and other formwork to support the roof or as the main frame for flying mold support. 2. For high-rise buildings inside and outside grid scaffolding.

3. Active working platform for mechanical and electrical installation, hull repair and other renovation works.

4. Portal scaffolding with simple roof truss can be used to form a temporary site dormitory, warehouse or shed.

5. Used to set up temporary viewing platforms and stands

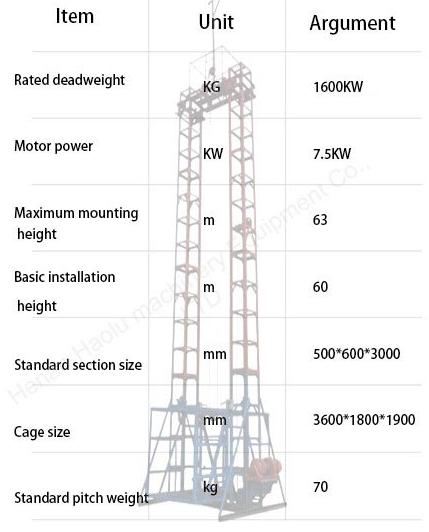

SSE160 gantry frame, parameters

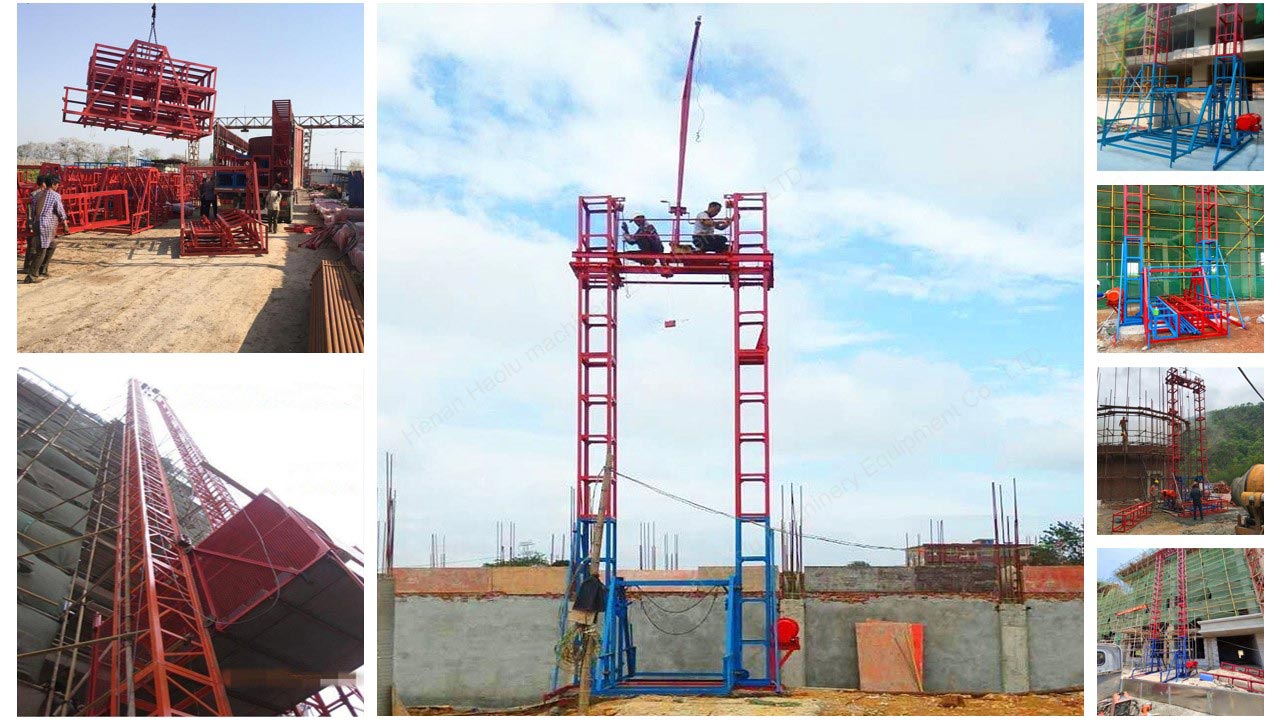

SSE160 gantry frame, field case
