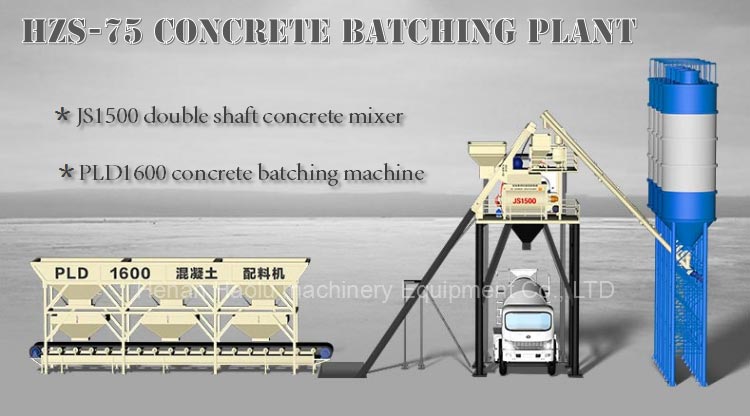

The theoretical productivity of HZS75 mixing station is 75m3/h, the power of main mixer is 60KW, the nominal capacity of mixer is 1500L, the number of bins in dosing machine is 4, the batching capacity is 2400L, 3×100t, the weighing range and accuracy of cement in powder bin are (0 ~ 1500) 1% kg, and the weighing range and accuracy of admixture are (0 ~ 50) 1%. The central control will realize full automation and adopt the electronic scale measurement function, which has high measurement accuracy and small error. It has the functions of screen display, ratio storage, automatic compensation of drop, etc., and is equipped with a manual system, which can realize manual and automatic control of the mixing process. In addition, the equipment is equipped with a printing system to realize centralized control and overall management of the whole equipment.

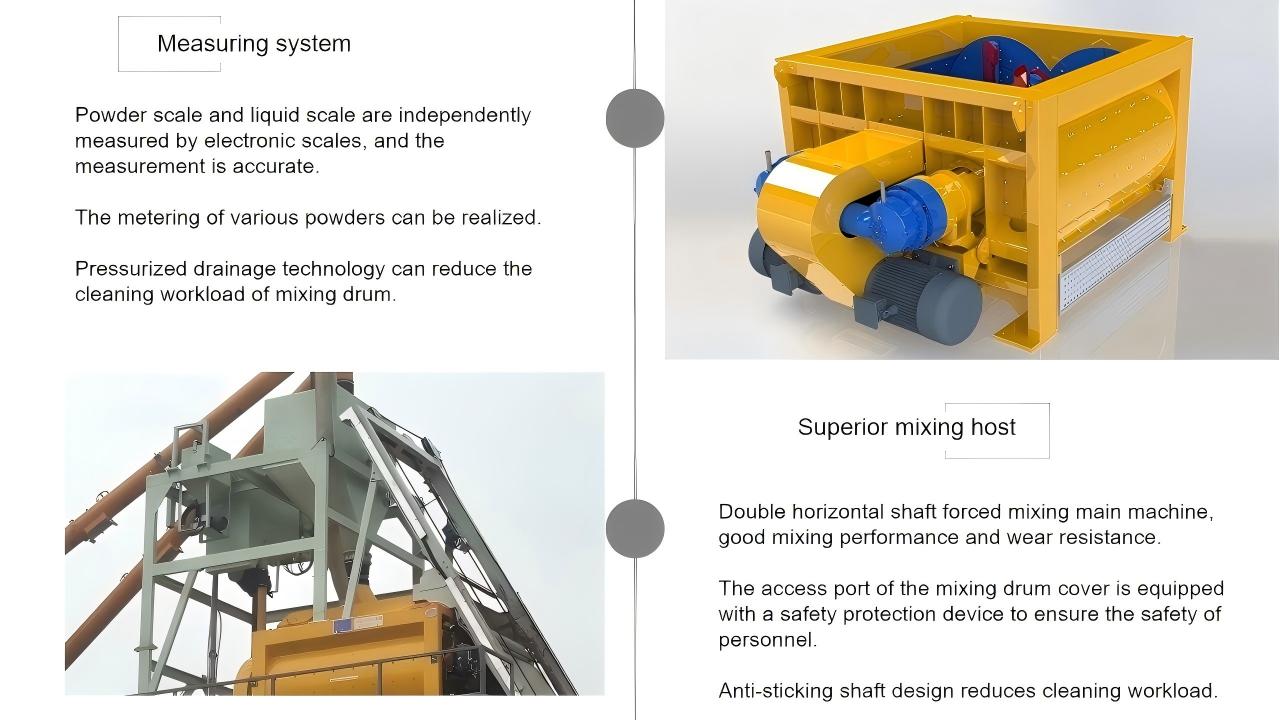

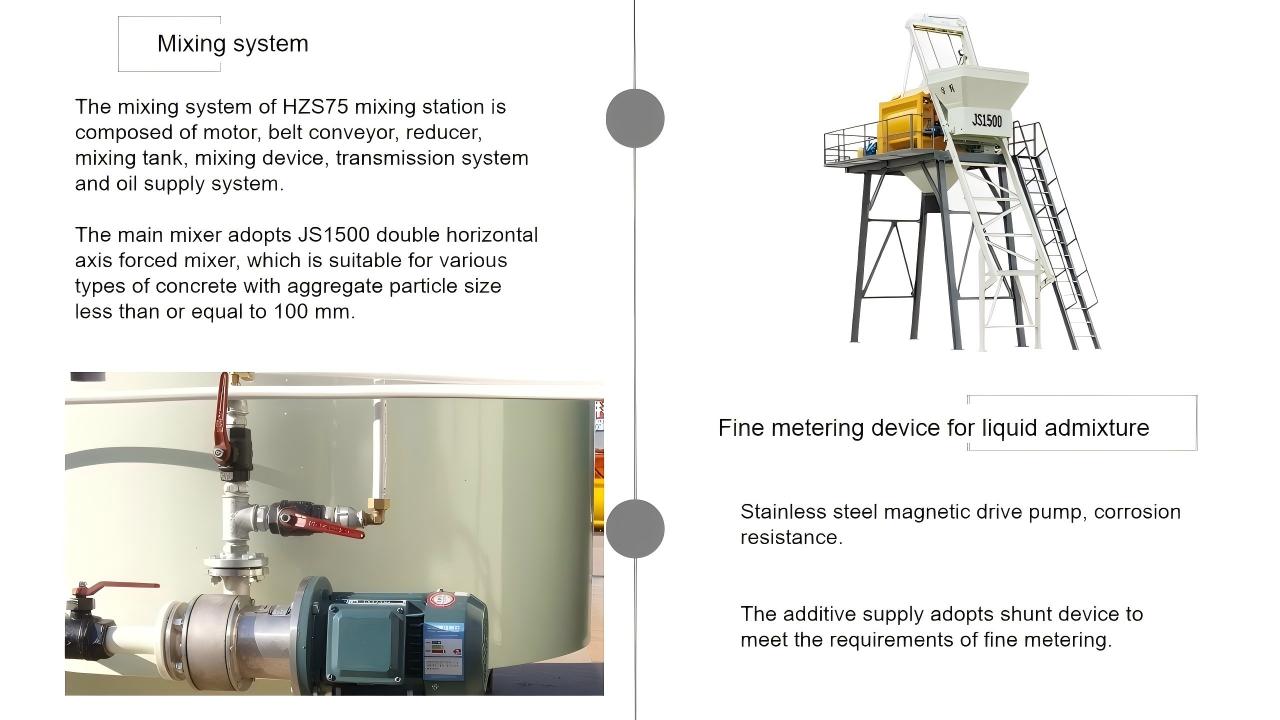

HZS 75  Part Detail Diagram

Performance advantage

1. Quick installation

The installation method of HZS75 concrete mixing station is steel beam. It takes only a few hours for the main system to be unloaded and installed, and it takes only two to four days for the installation of other supporting facilities such as control room and batching station to be completed and ready for production.

2. Reasonable design

The design of mixing platform, metering platform and lifting system platform of HZS75 concrete mixing station is very reasonable, which fully guarantees the demand of inspection and maintenance equipment. When the external protective layer needs to be installed, enough space for daily work can still be ensured.

3. Less floor space

HZS75 concrete mixing station uses belt-type or bucket-type feeding. The design of belt and hopper can efficiently load and dump aggregate and greatly reduce the occupied area of the site.

4. Less investment and simple maintenance

HZS75 concrete mixing station has the advantages of less capital, small occupied area, less equipment, simple equipment maintenance and safe and convenient equipment operation.

HZS 75  mixer parameters

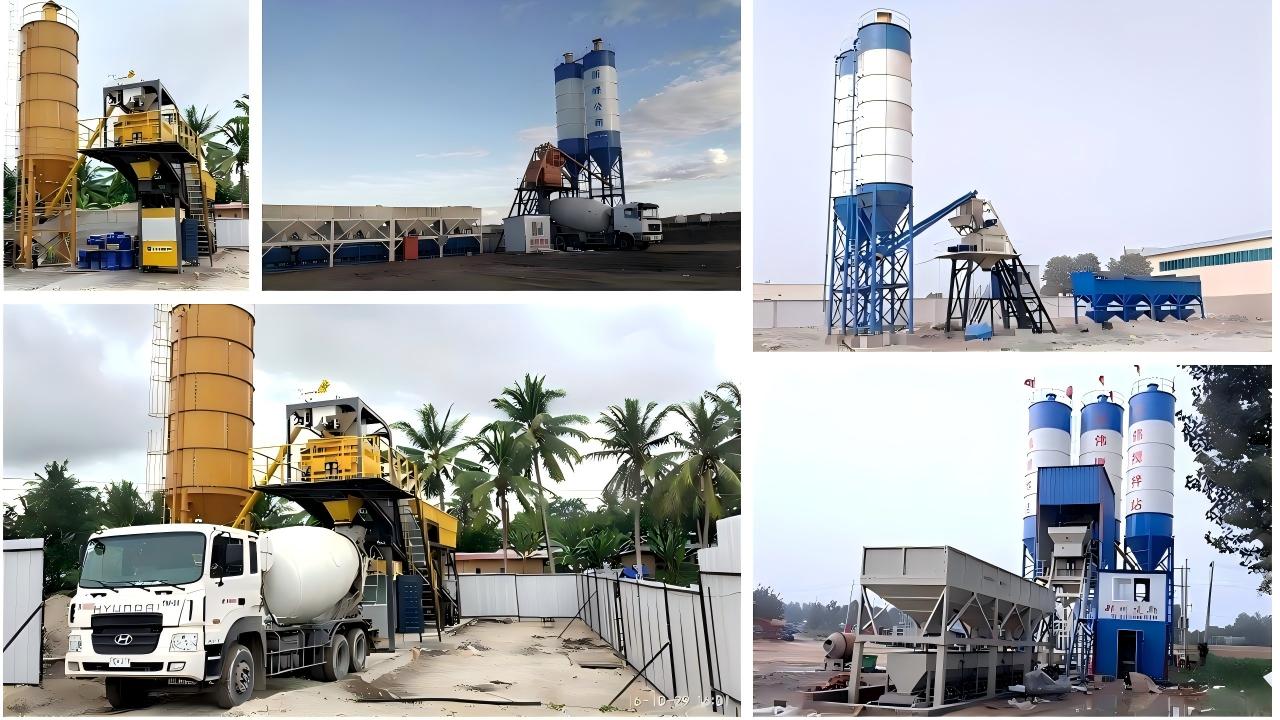

On site case of HZS 75 concrete mixer
