JS series double horizontal shaft forced concrete mixer. This series of products has six main models: JS500, 750, 1000, 1500, 2000, and 3000. It can be combined with different models of PL series batching machines to form a simple concrete mixing station, and can also serve as the main machine of the mixing station. It can mix dry hard concrete, plastic concrete, flowing concrete, lightweight aggregate concrete, and various mortars, suitable for various prefabricated component factories, industrial and civil construction departments such as highways, bridges, water conservancy, ports, docks, etc. to mix dry hard concrete, plastic concrete, flowing concrete, lightweight aggregate concrete, and various mortars.

      The 750 concrete mixer is a dual horizontal axis forced mixer, which has the dual advantages of single machine independent operation and a simple concrete mixing station composed of PLD series batching machines. It can also provide a matching host for the mixing station, making it an efficient model with wide applications. Performance characteristics: The product has a reasonable design structure, novel layout, and convenient use and maintenance. Users can equip their own bucket trucks, dump trucks, and mixer trucks for use, and can modify them according to their special requirements to meet their needs.

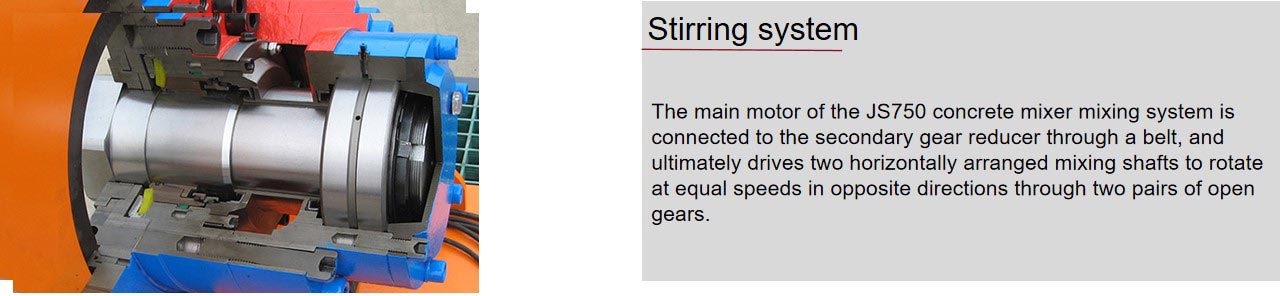

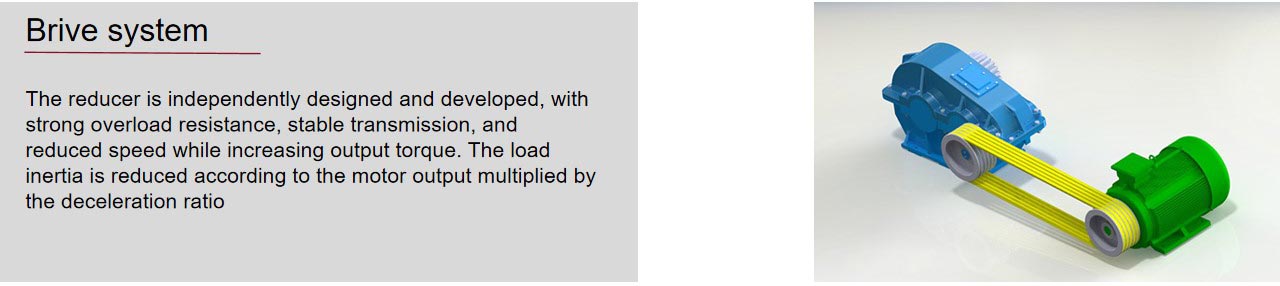

JS7500 Part Detail Diagram

Overall diagram of 750 mixer

Q: What is the lifting speed of the hopper of the 750 forced concrete mixer?

Answer: The JS750 concrete mixer can lift materials by about 18m per minute, which is the fastest and most stable among machines of the same type in the industry.

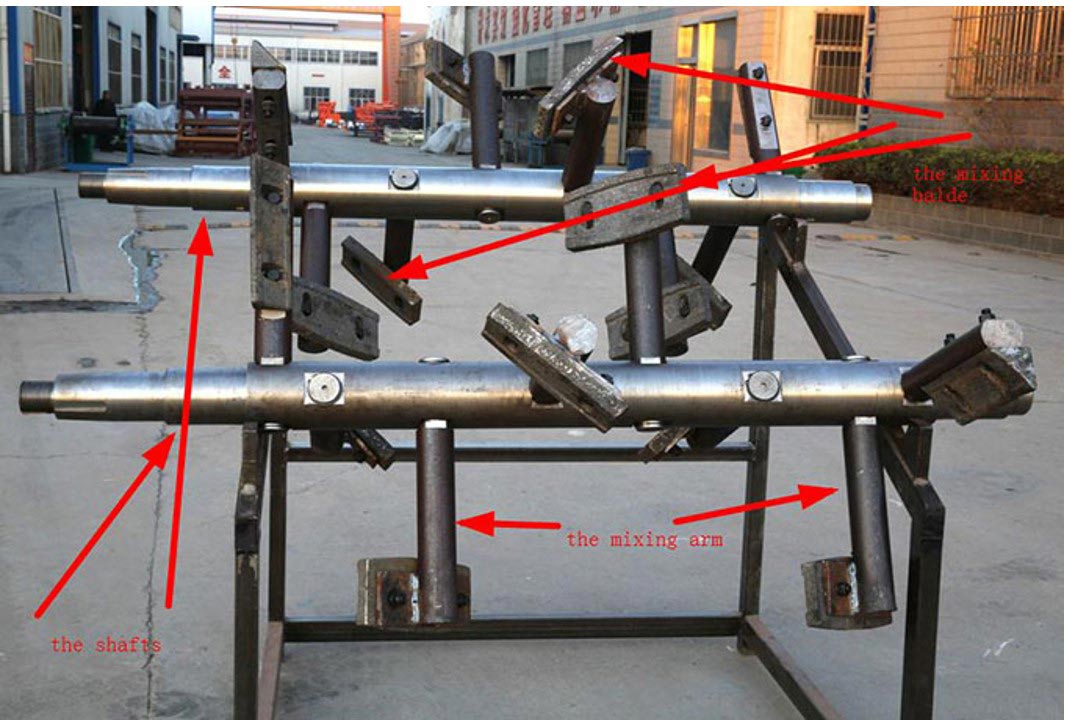

Q: How many mixing blades are there in a 750 forced mixer?

Answer: The Great Wall Construction Machinery 750 forced concrete mixer has 14 built-in blades, which can be purchased separately if not enough.

Q: Power of JS750 forced mixer

Answer: The JS750 forced mixer includes a 30 kW mixing motor, a 7.5 kW winch motor, and a 1.1 kW water pump motor, with a total power of about 40 kW.

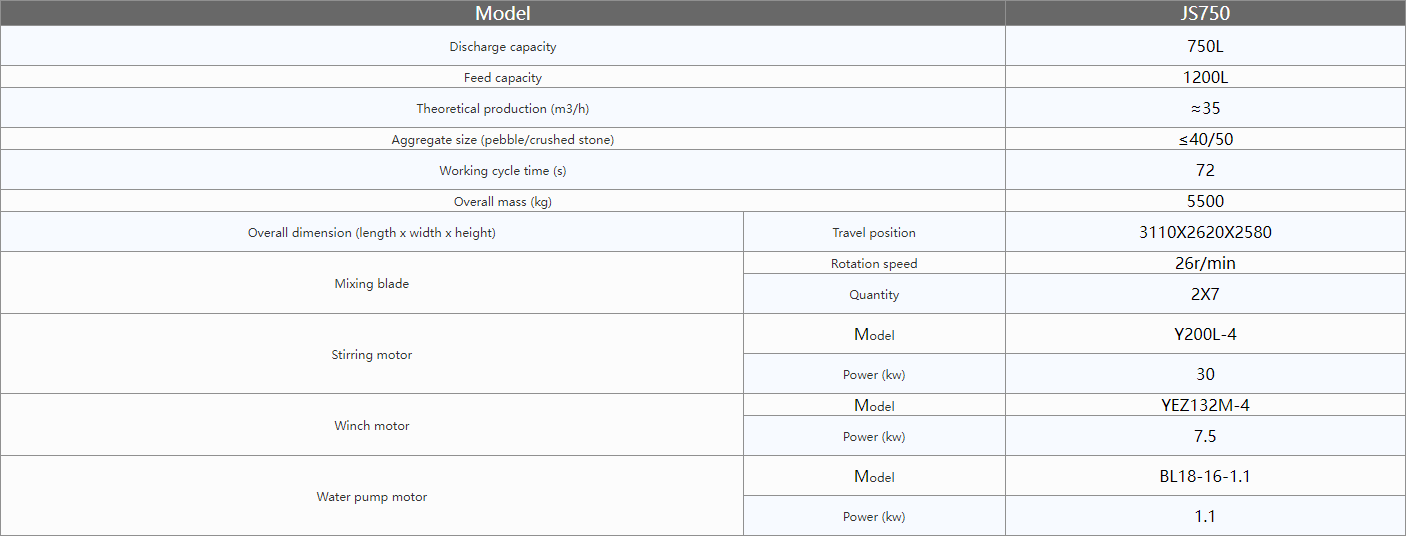

S750 mixer parameters

On site case of JS750 concrete mixer
