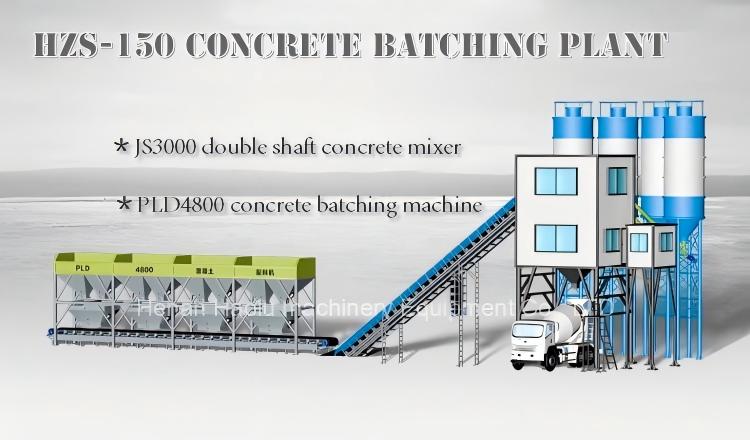

HZS150 concrete mixing station is mainly composed of sand and gravel batching system, material conveying system, metering system, stirring device, water supply system, additive supply system, gas path system and electric control system. Its technological process is as follows: cement and fly ash in the cement silo enter the corresponding weighing hopper through the screw conveyor, and the sand and stone in the sand and gravel hopper are put into the weighing hopper under it through the arc door at the bottom of the silo for weighing, and then input by the horizontal belt conveyor and the inclined belt conveyor. Water and additives are sent to their respective weighing hoppers by electric pumps, and after the ingredients are mixed, they enter the mixer for mixing, and the mixed concrete is directly discharged into the concrete delivery truck through the concrete hopper.

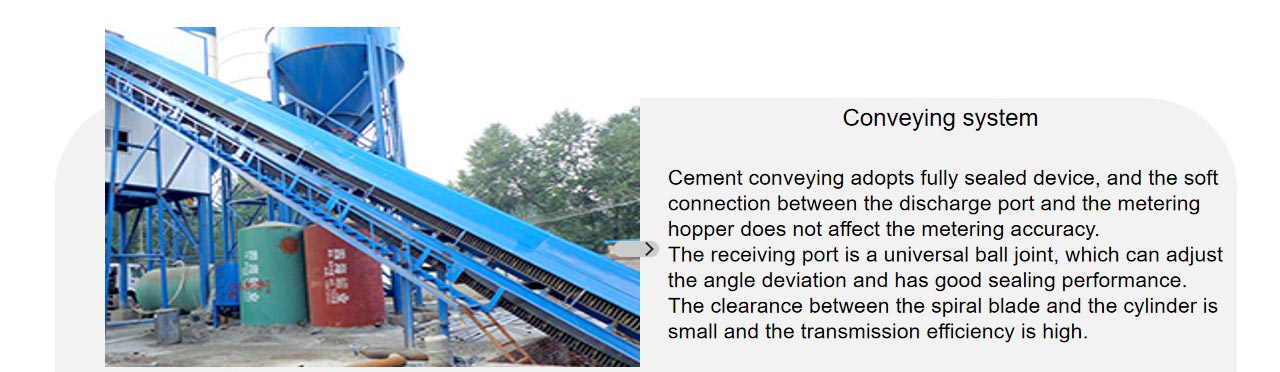

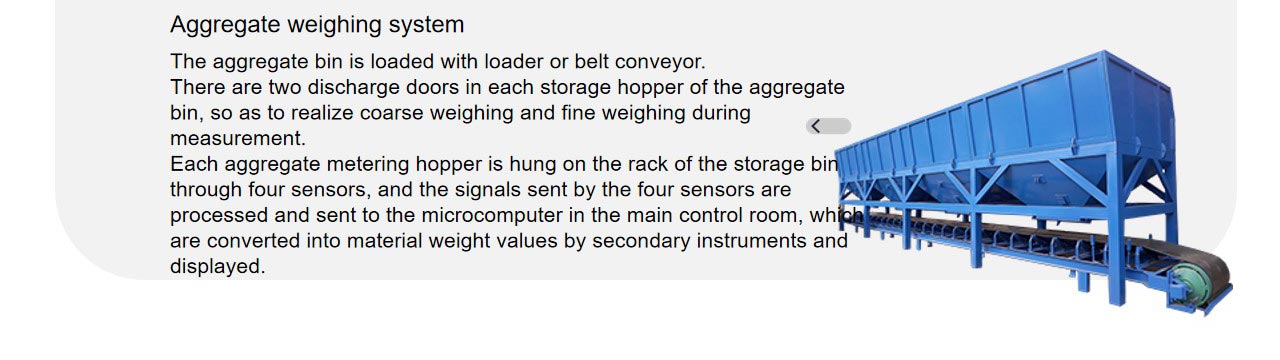

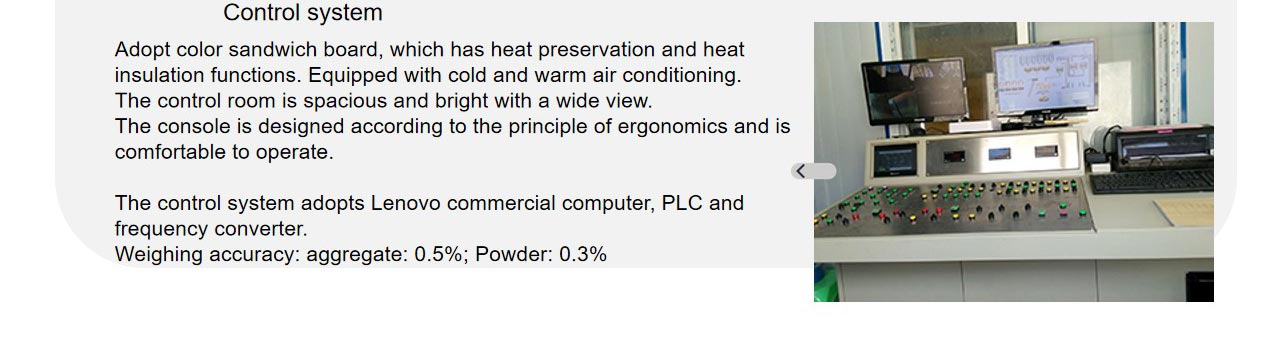

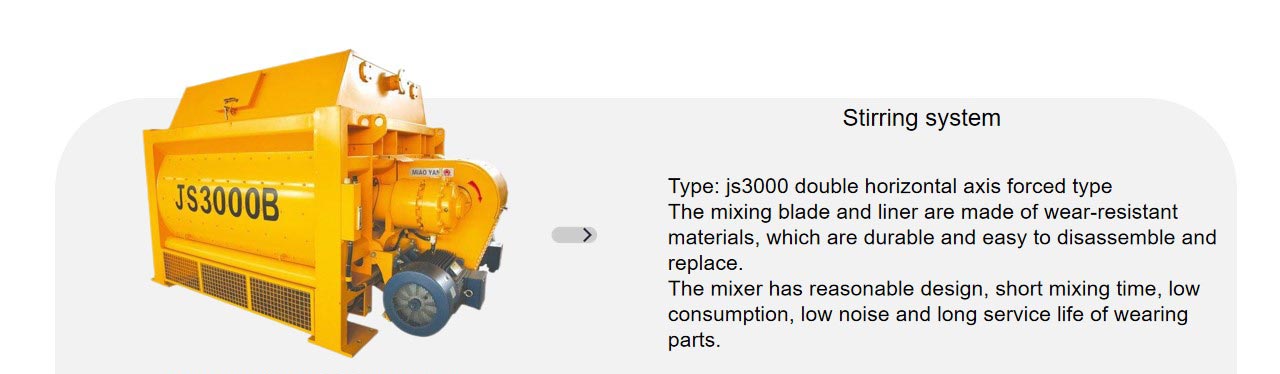

HZS 150  Part Detail Diagram

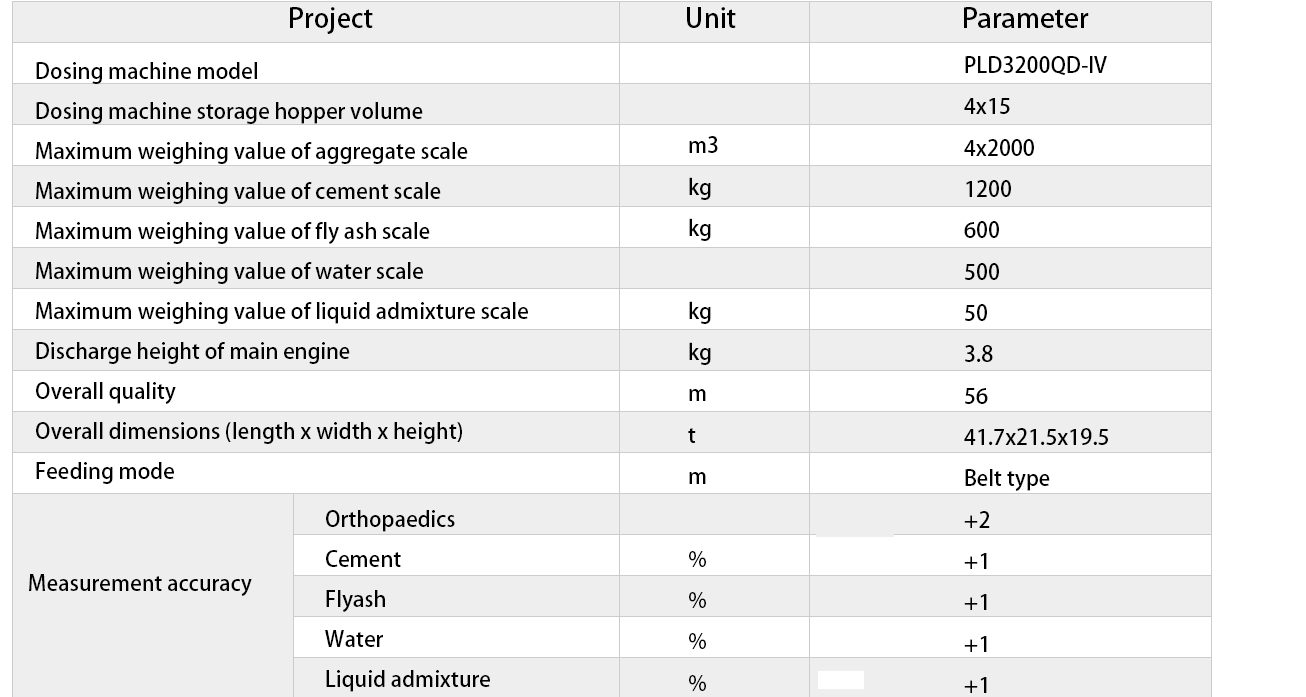

HZS150 mixer parameters

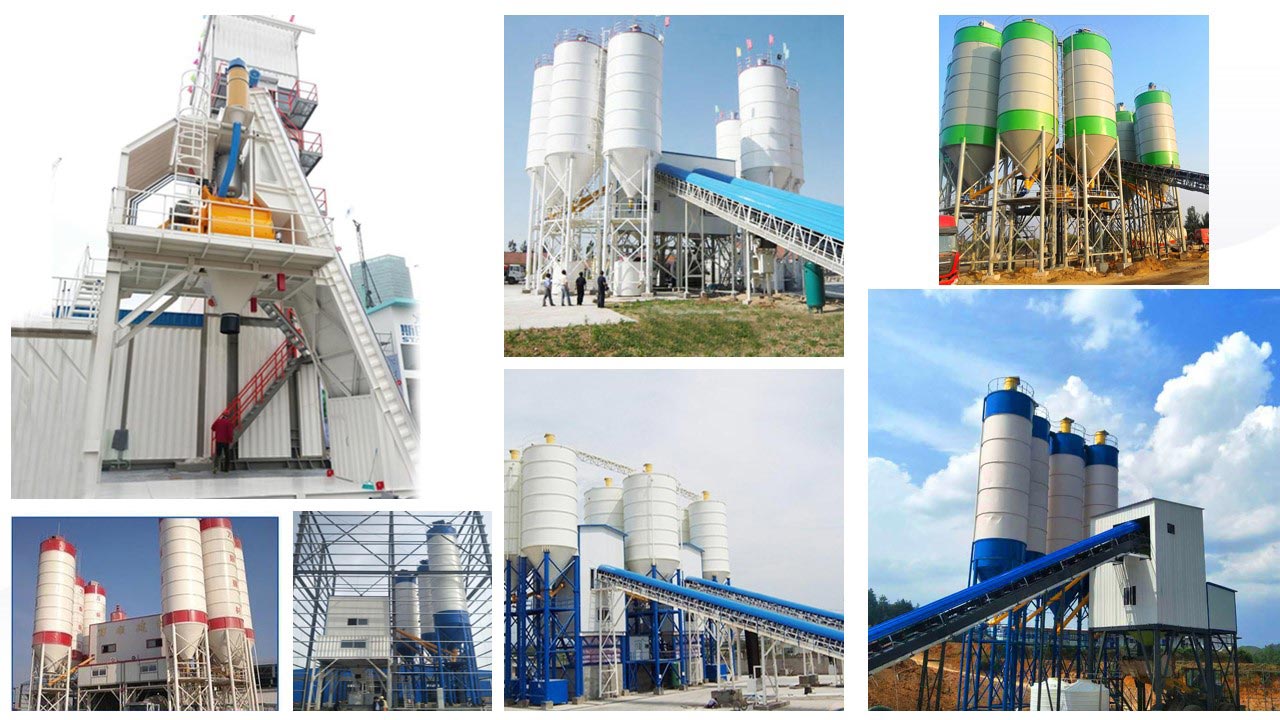

On site case of HZS150 concrete mixer
