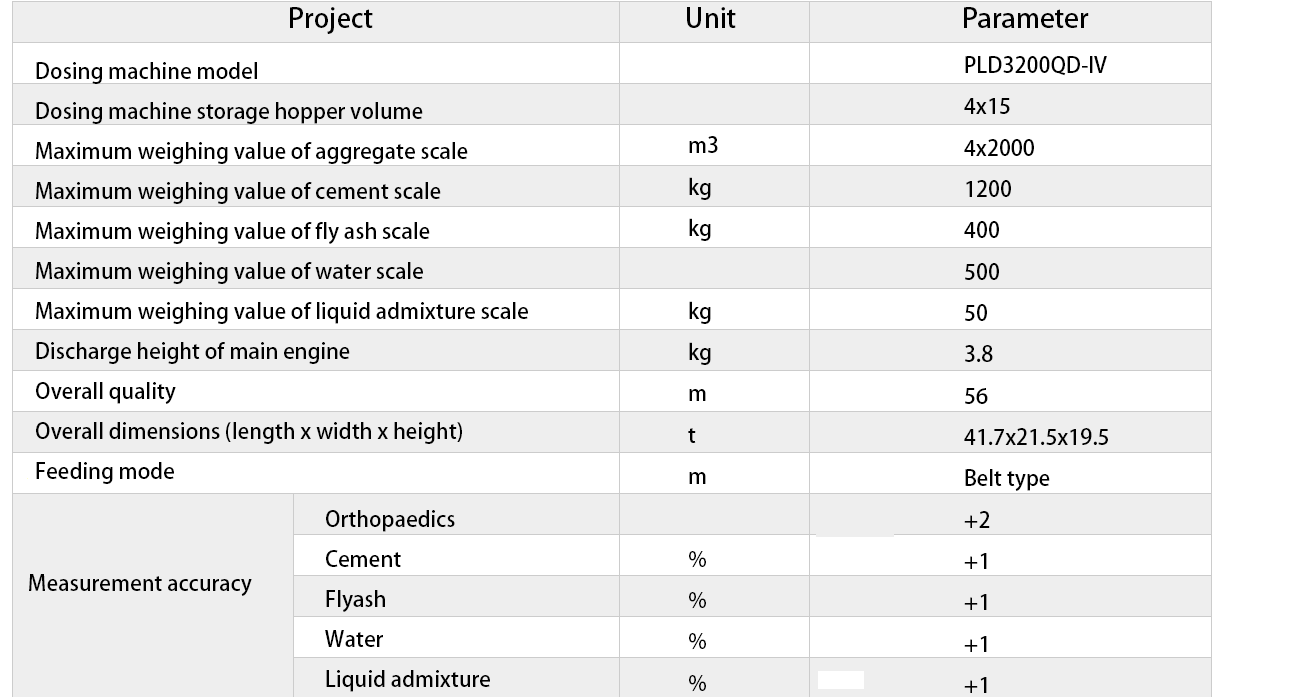

HZS120 concrete mixing station, the whole set of equipment includes double horizontal forced shaft mixer, dosing machine, cement silo and screw conveyor, belt conveyor and microcomputer control room. JS2000 double horizontal shaft forced mixer is a forced and efficient equipment, which can produce various kinds of concrete, such as plastic and hard concrete, with high production efficiency, short mixing time and beautiful appearance. It is widely used in large and medium-sized building construction, roads and bridges, and precast plants for producing concrete products, and is an ideal equipment for producing commercial concrete. The expected productivity of this concrete mixing station is 120m3/h, the power of the main mixer is 74KW, the nominal capacity of the mixer is 2000L, the number of bins in dosing machine is 4, the batching capacity is 3200L, 3×100t, the weighing range and accuracy of the powder bin capacity are (0 ~ 1200) 1% kg, and the weighing range and accuracy of the admixture are (0 ~ 50) 1%.

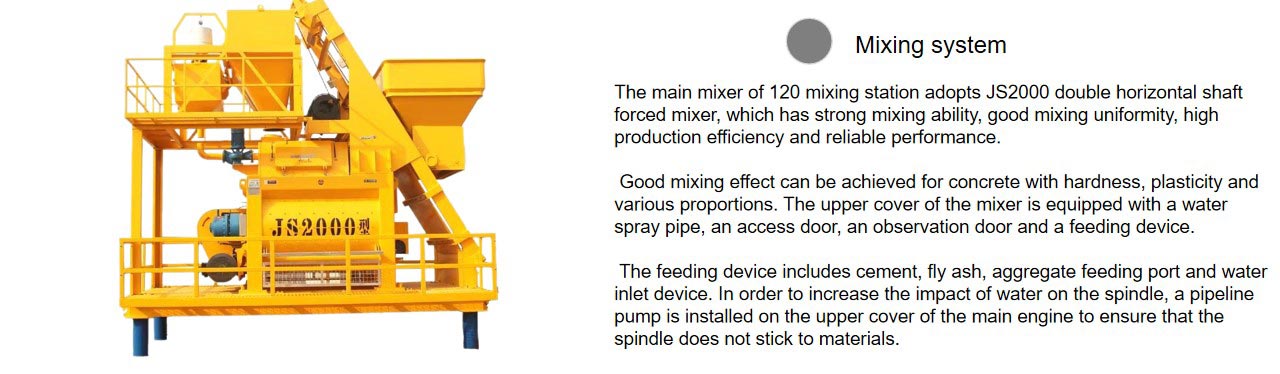

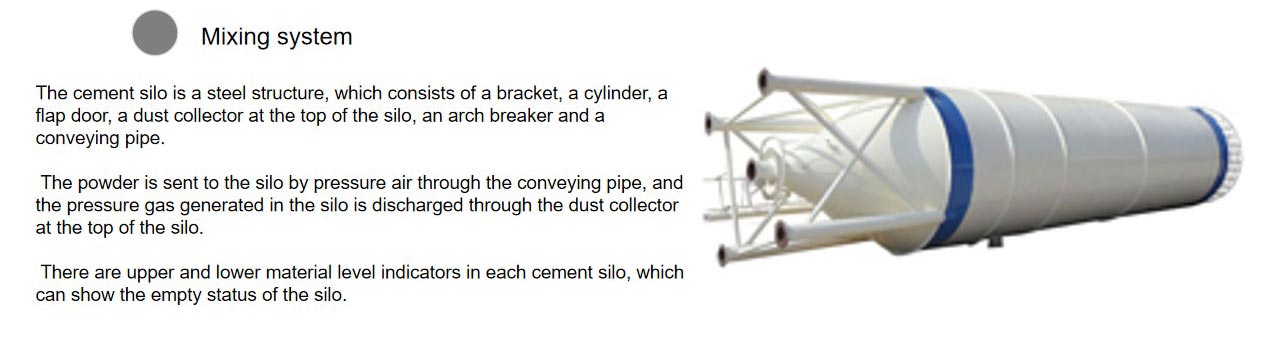

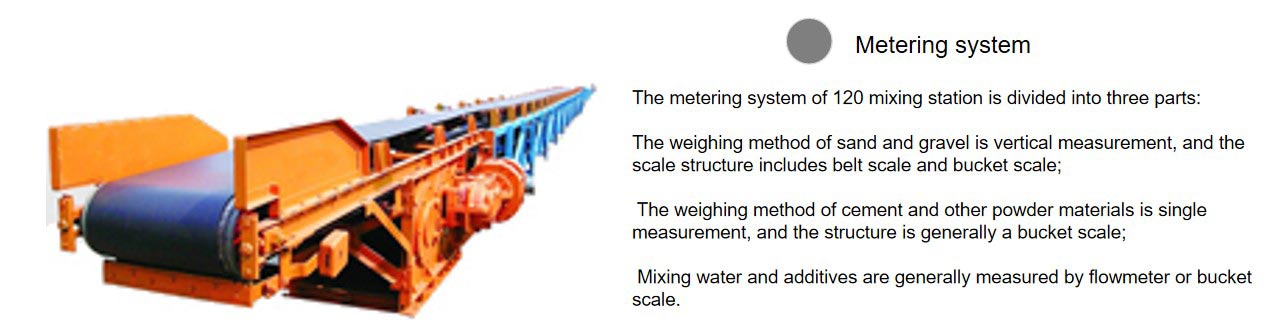

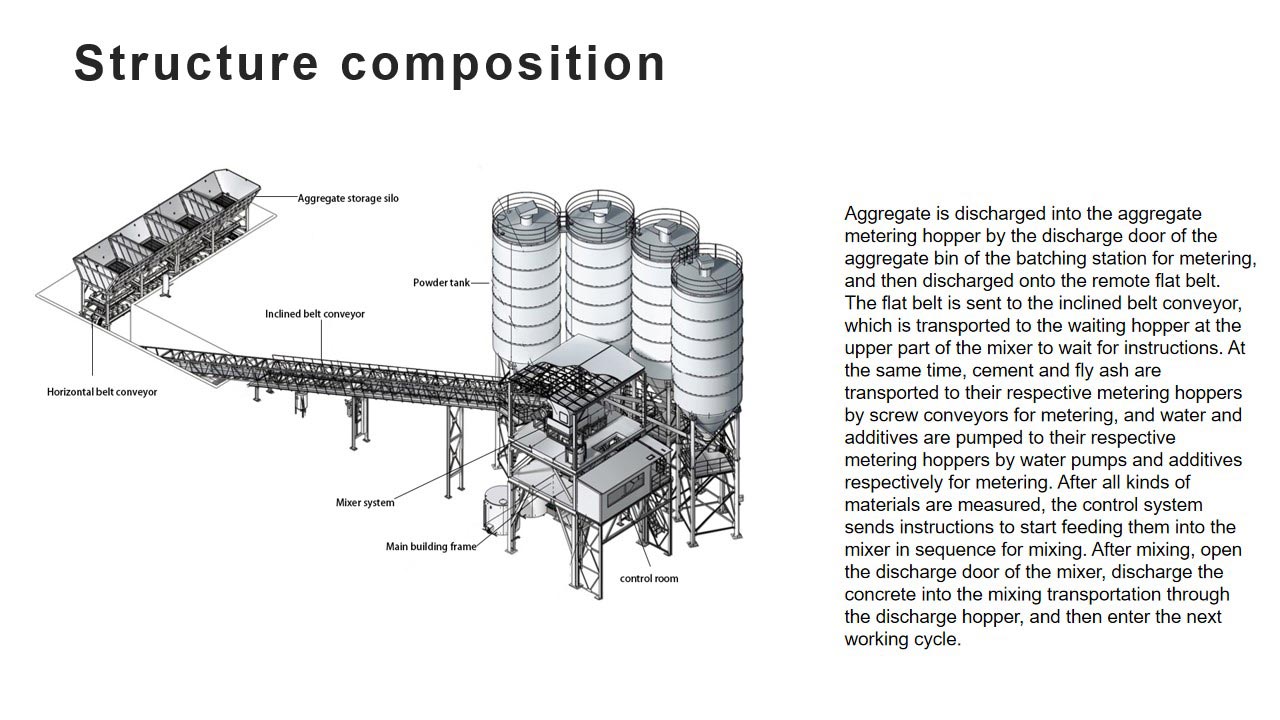

HZS 120 Part Detail Diagram

HZS 120 Part Detail Diagram

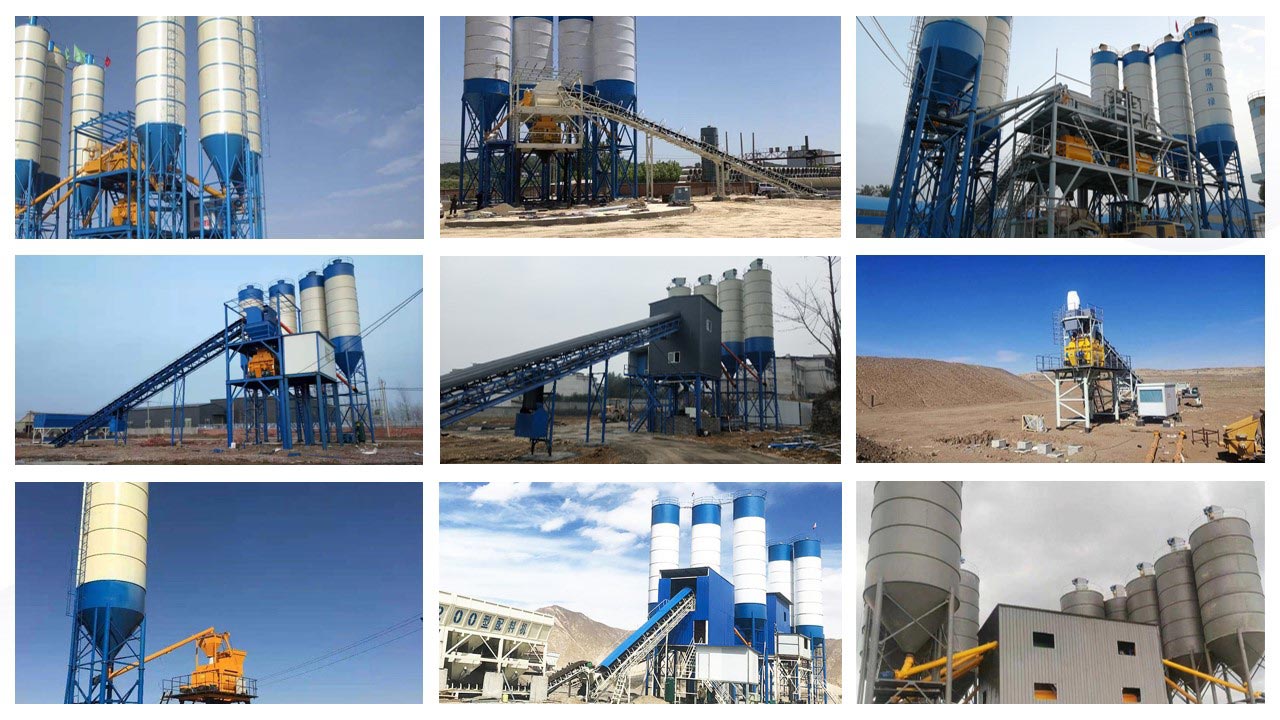

On site case of HZS120 concrete mixer
