JS1500 forced mixer. The 1.5 square meter concrete mixer produced by Xinfeng Machinery is also a 75 mixing station host and a 90 mixing station host. This machine has the dual advantages of single machine independent operation and a simple concrete mixing station composed of PLD series batching machines. It can also provide a matching host for the mixing station.

The unloading heights of this machine are 2.7m and 3.8m respectively (or customized by the user), and users can use it with their own dump truck or concrete mixing conveyor truck

Product advantages:Reasonable design structure, uniform mixing, high production efficiency, low energy consumption, and convenient use and maintenance.

Application field:Commercial concrete production, prefabricated component factories, transportation, water conservancy building maintenance engineering, and medium to large construction sites

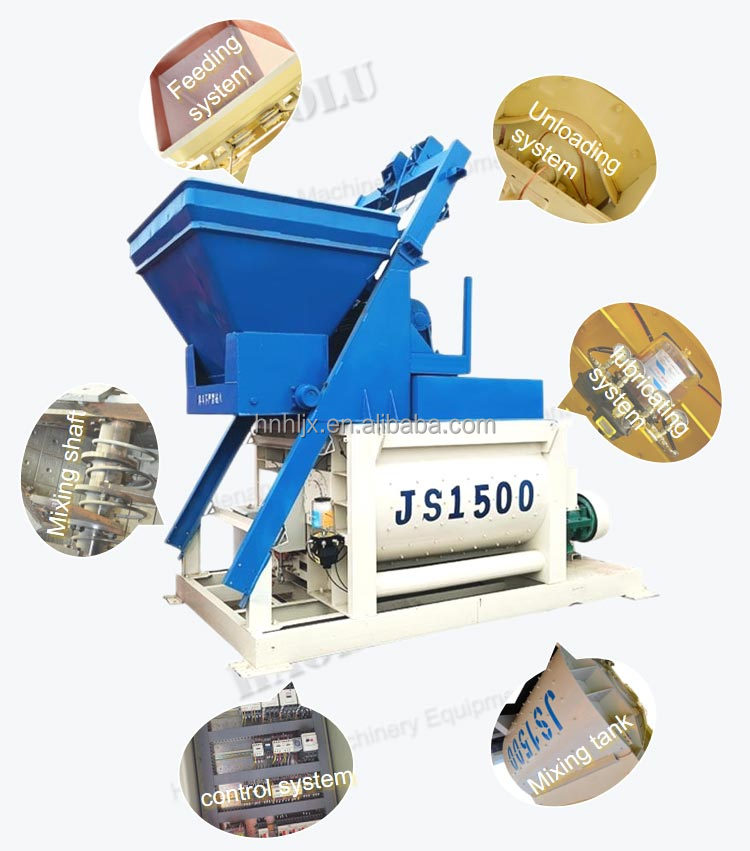

JS1500 Part Detail Diagram

Product advantages

Characteristics of JS1500 concrete mixer

1. Five types of lining plates are embedded in the mixing drum for uniform mixing, all of which are connected and tightened with countersunk screws to make the cement mixing more uniform;

2. The compact structure of the aggregate is fed by a bucket elevator, which has a compact structure and a small footprint;

3. The design of the Xinjin mixer adopts a belt spiral bevel planetary reducer transmission form, with a compact structure, low noise, and overload protection function;

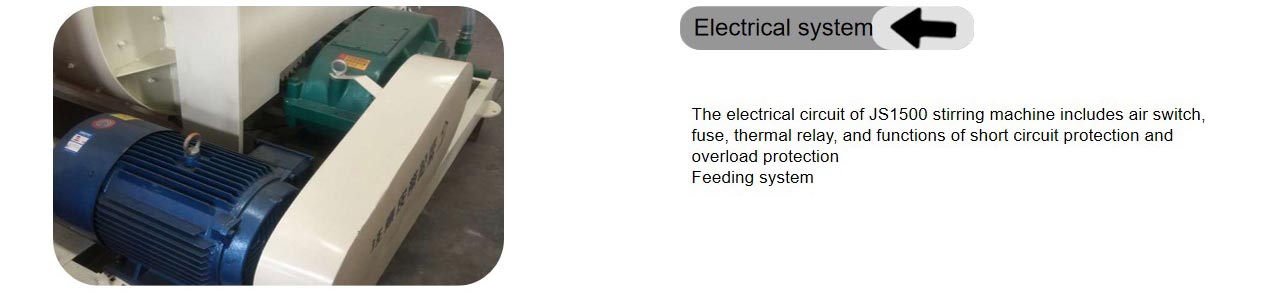

4. Easy to operate, all electrical control systems use imported components, with complete functions, reliable performance, and convenient operation and use;

5. Not only can dry and hard concrete be mixed, but also lightweight aggregate concrete can be mixed to achieve strong mixing effect and uniform mixing;

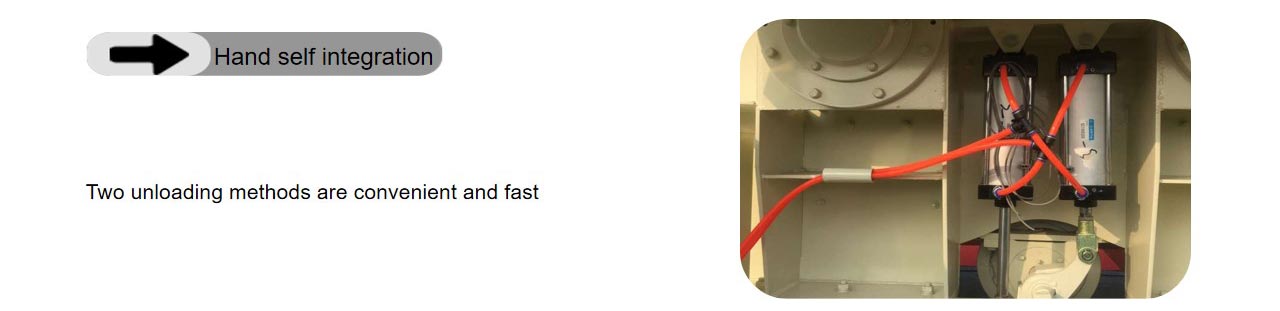

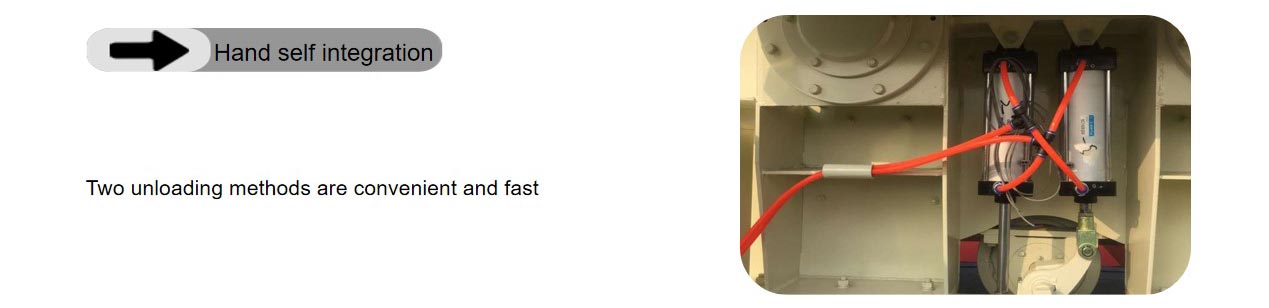

6. The pneumatic discharge door is installed at the bottom of the mixer, and the discharge is started through a cylinder. And the opening and closing positions of the discharge doors can be adjusted to ensure the sealing of the discharge doors;

7. Long service life: Imported components are used, and the diameter of the mixing drum is half smaller than that of the vertical shaft type with the same capacity. Therefore, the blade speed is half smaller than that of the vertical shaft type, resulting in less wear on the blades and lining plates and long service life.

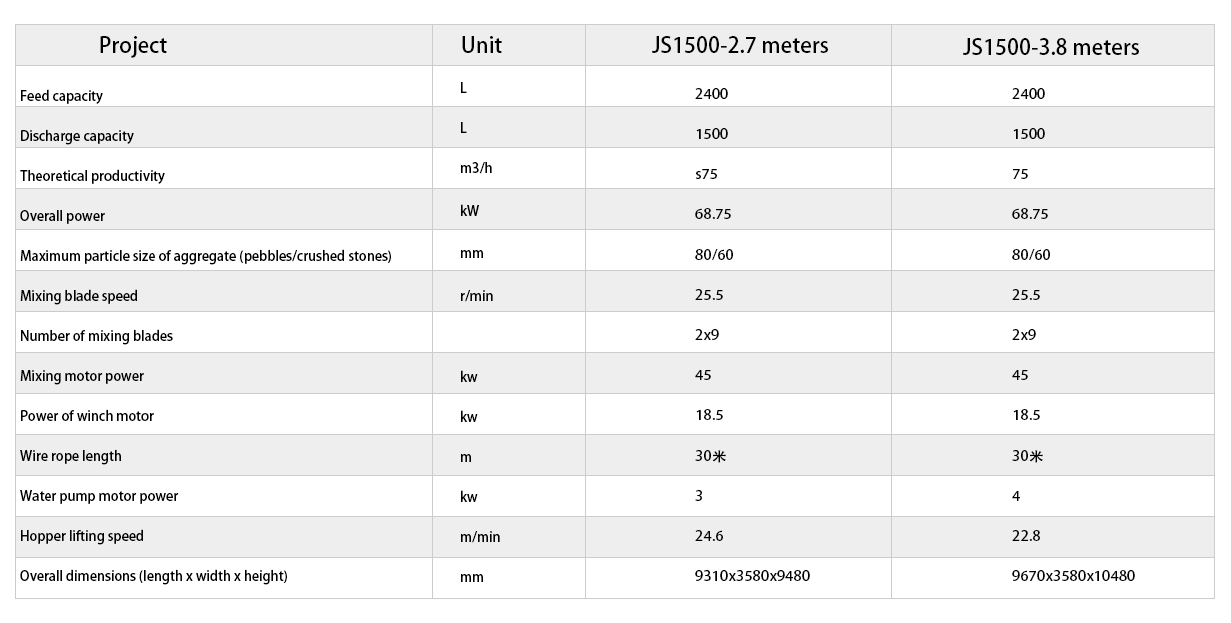

JS1500 mixer parameters

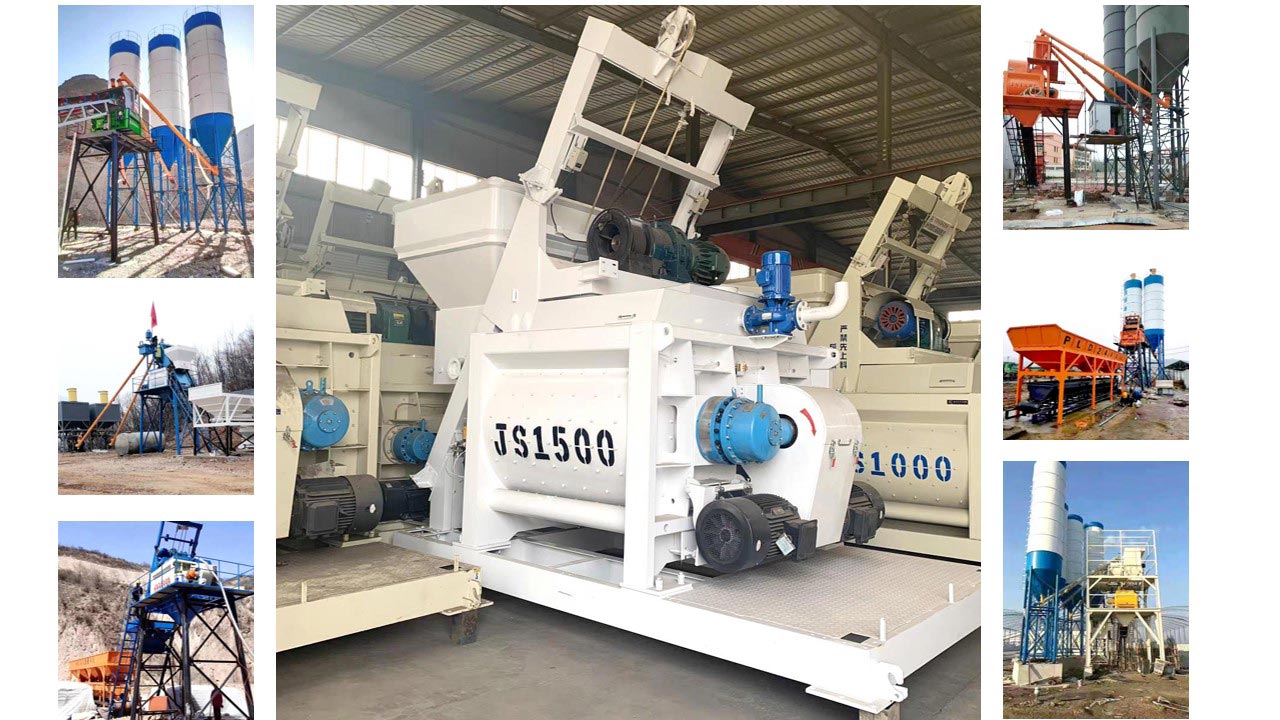

On site case of JS1500 concrete mixer
